Granulates / evaporation raw materials

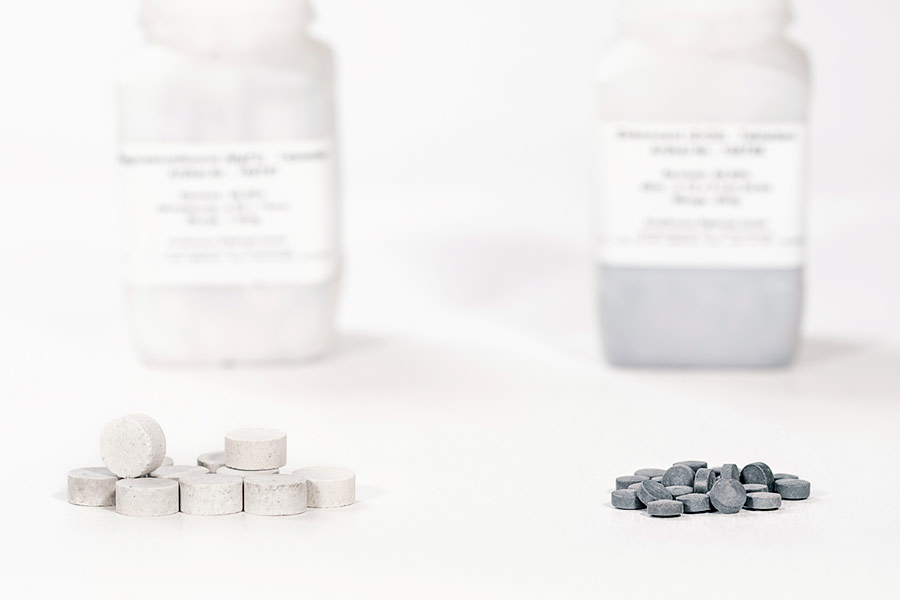

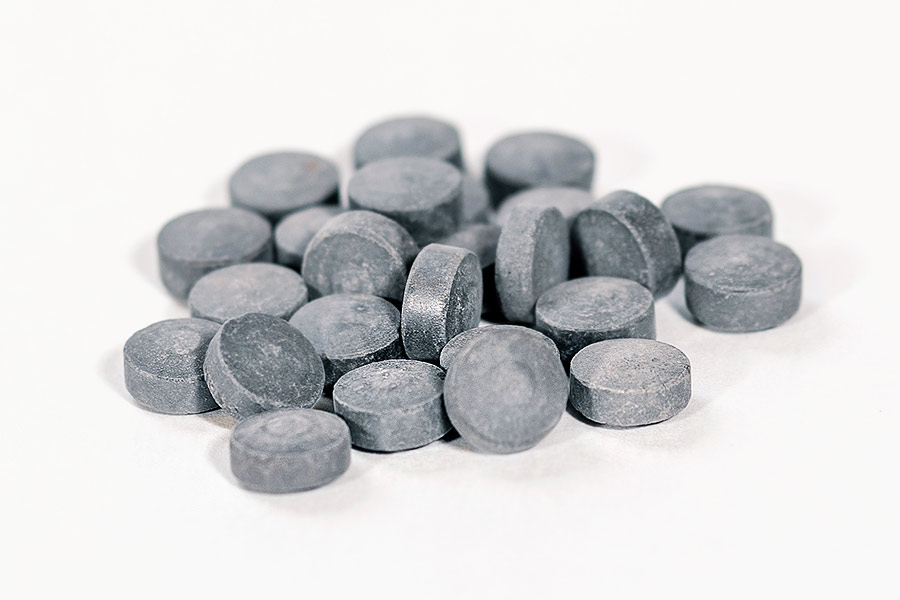

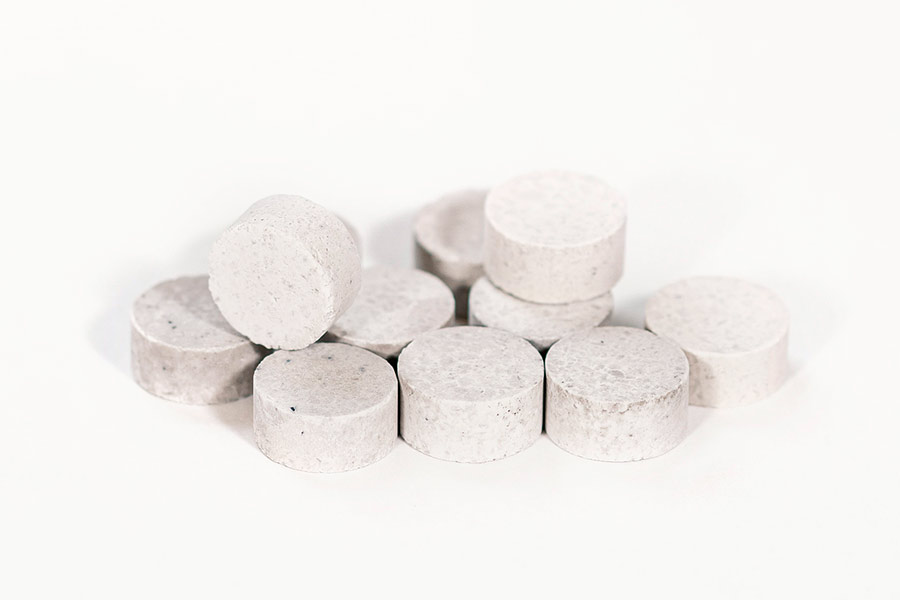

It is preferable that two coating processes are used to coat optical components such as lenses, mirrors, filters: Sputtering and evaporation. For evaporation, suitable materials in the form of granulates, pellets are poured into suitable pans and evaporated.

Fluoride


Formula Purity (%) Size Melting point (°C) Refraction index Transparency (µm) Density (g/cm³)
Granulate (mm) Pellets (Ømm)
10 30
MgF2 99.9 - 99.99 crystalline     1266 1.38 0.25 - 9 4.2
YbF3 99.99 x     1157 1.52 0.22 - 12 8.17
LaF3 99.99 x     1490 1.59 0.22 - 14 6
YF3 99.99 x     1387 1.5 0.2 - 14 4.01
CeF3 99.5 - 99.9 x x   1418 1.6 - 6.16
SrF3 99.9 x     1450 1.48 0.3 - 5 4.24
KF 99.95 x     880 1.35 0.2 2.48

Sulphide


Formula Purity (%) Size Melting point (°C) Refraction index Transparency (µm) Density (g/cm³)
Granulate (mm) Pellets (Ømm)
10 30
ZnS 99.99 x x   1830 2.4 0.75 - 18 4.1
CdS 99.9   x   1750 2.4 0.5 - 18 4.8

Oxide


Formula Purity (%) Size Melting point (°C) Refraction index Transparency (µm) Density (g/cm³)
Granulate (mm) Pellets (Ømm)
10 30
Al2O3 99.9 0.5 - 5 x   2045 1.6 - 1.65 0.17 - 9 4
BaTiO3 99.99 0.5 - 5 x   1620 - - -
Bi2O3 99.9   x   820 2.5 0.4 8.9
CeO2 99.99 0.5 - 5 x   2600 2.2 0.46 - 11 7.3
Cr2O3 99.9 0.5 - 5 x   2435 2.4 - 5.2
CuO 99.9 0.5 - 5 x   1326 2.6 - 6.3
Fe2O3 99.9   x   1565 2.75 - 2.9 - 5.24
Gd2O2 99.9 0.5 - 5 x x 2310 1.7 - 1.8 0.22 - 9 7.4
In2O3 99.99 0.5 - 5 x   - - - -
MgO 99.9 0.5 - 5 x   2800 1.7 0.23 - 9 3.58
Nb2O5 99.99 0.5 - 5 x   1530 2.3 0.35 - 9 4.47
NiO 99.5 - 99.9   x   1990 2 - 2.1 0.52 7.45
Pr6O11 99.9 0.5 - 5     2125 1.83 - 1.9 0.4 6.88
PrTiO3 99.9 1 - 5 x   2299 - 2300 2.1 0.3 - 9 -
Sc2O3 99.99 0.5 - 5     - 1.68 0.4 - 9 -
SiO 99.99 0.5 - 5     sublimation 1.9 1.6 - 8 2.1
SiO2 99.99 crystalline     1610 1.45 0.2 - 9 2.2
Sm2O3 99.9   x   2350 1.8 0.23 7.4
Ta2O5 99.99 0.5 - 5 x   1800 2.3 0.35 - 9 8.7
Ti2O2 99.9 0.5 - 5 x   1880 2.2 - 2.3 0.4 - 12 4.53
TiO 99.9 0.5 - 5 x x 1750 2.2 - 2.3 0.4 - 12 4.93
TiO2 99.99/99.9 0.5 - 5 x x 1800 2.3 0.36 - 9 4.29
V2O5 99.9 0.5 - 5     690 2.3 0.56 - 7 3.36
ZnO 99.9   x   1975 2 0.4 - 16 5.6
ZrO2 99.99/99.9 0.5 - 5 x x 2700 1.95 - 2.05 0.25 - 9 5.5

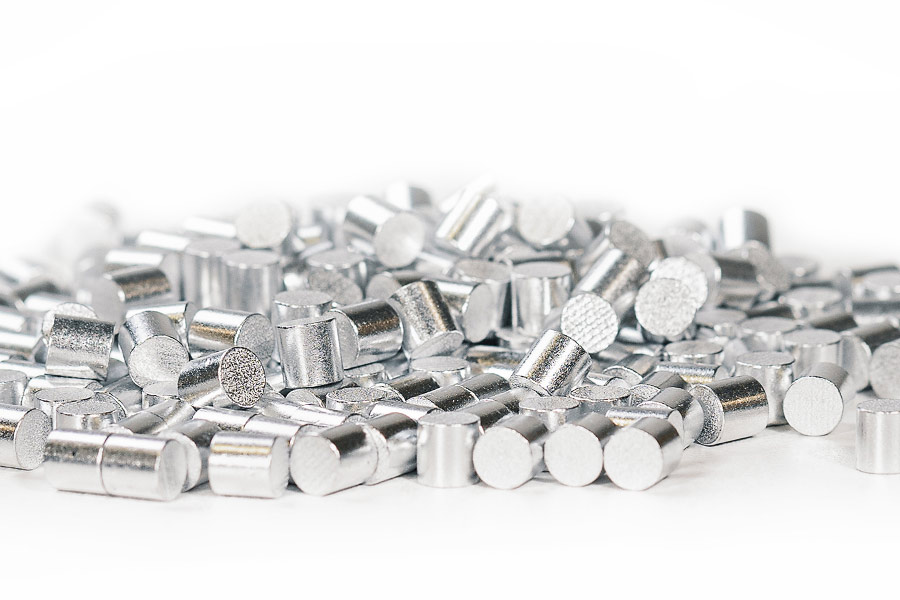

Metals


Material Formula Purity (%)
Aluminium Al 99.9 - 99.999
Chrome Cr > 99.5
Cobalt Co 99.9
Dysprosium Dy 99.5 - 99.9
Iron Fe 99.9
Erbium Er 99.5 - 99.9
Gadolinium Gd 99.9 - 99.99
Germanium Ge 99.99
Gold Au > 99.9
Holmium Ho 99.5 - 99.9
Copper Cu 99.9 - 99.999
Lanthanum La 99.9
Material Formula Purity (%)
Molybdenum Mo 99.9
Neodymium Nd 99.5 - 99.9
Nickel Ni > 99.9
Nickel/Chrome Ni:Cr 80/20 99.9
Nickel/Iron Ni:Fe 80/20 99.9
Niobium Nb > 99.9
Palladium Pd > 99.9
Platinum Pt > 99.9
Praseodymium Pr 99.5 - 99.9
Rhodium Rh > 99.9
Ruthenium Ru 99.95
Samarium Sm 99.5 - 99.9
Material Formula Purity (%)
Selenium Se
Silver Ag > 99.9
Silicon Si 99.9 - 99.999
Tantalum Ta 99.9
Terbium Tb 99.5 - 99.9
Titanium Ti > 99.8
Yttrium Y 99.5 - 99.9
Zinc Zn > 99.9
Zinc/Aluminium Zn:Al 98/2 99.5
Tin Sn > 99.9
Zircon Zr 99.9
